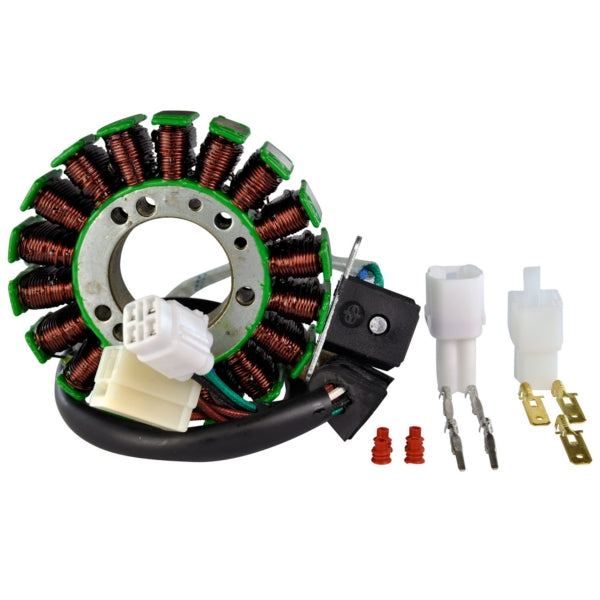

Kimpex HD Stator ARCTIC CAT, KAWASAKI, SUZUKI - 285687 - RecreaShop

Kimpex HD Stator ARCTIC CAT, KAWASAKI, SUZUKI - 285687

204,92 $
Skip to product information
Kimpex HD Stator ARCTIC CAT, KAWASAKI, SUZUKI - 285687 - RecreaShop
  • Kimpex HD Stator ARCTIC CAT, KAWASAKI, SUZUKI - 285687 - RecreaShop
  • Kimpex HD Stator ARCTIC CAT, KAWASAKI, SUZUKI - 285687 - RecreaShop
Kimpex HD Stator ARCTIC CAT, KAWASAKI, SUZUKI - 285687

Kimpex HD Stator ARCTIC CAT, KAWASAKI, SUZUKI - 285687

RM01048
204,92 $
Shipping calculated at checkout.
2 left

Delivered in 3 to 5 business days
when ordered before noon

30-day returns
See conditions

Expert advice
A team that rides too
  • Direct replacement for your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper wire, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All shipped products are inspected
Note: The condition of the battery has a major impact on the stability of the electrical system. No stator can operate properly with a weak or defective battery. Always charge your battery before testing your charging system or replacing other parts. If in doubt, test your battery's capacity or replace it.
  • Compatible brandSUZUKI
  • Inner diameter (mm)35
  • Outer diameter (mm)94
  • Thickness (mm)26
  • Number of wires7
  • Number of connectors2
  • Number of terminals7
  • NotesKN-147
  • Number285687
