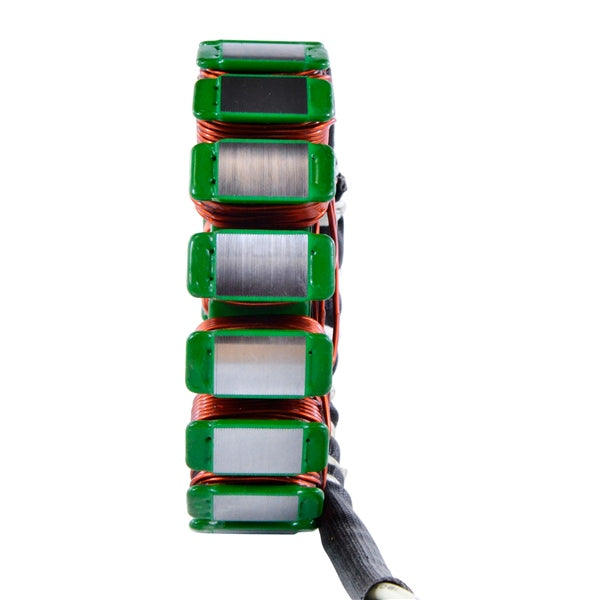

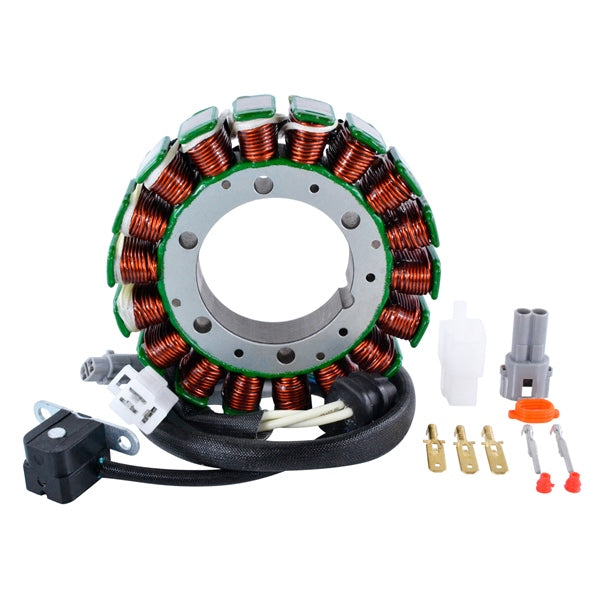

Kimpex HD Stator ARCTIC CAT - 225559 - RecreaShop

Kimpex HD Stator ARCTIC CAT - 225559

228,35 $
Skip to product information
Kimpex HD Stator ARCTIC CAT - 225559 - RecreaShop
  • Kimpex HD Stator ARCTIC CAT - 225559 - RecreaShop
  • Kimpex HD Stator ARCTIC CAT - 225559
  • Kimpex HD Stator ARCTIC CAT - 225559
  • Kimpex HD Stator ARCTIC CAT - 225559
  • Kimpex HD Stator ARCTIC CAT - 225559 - RecreaShop
  • Kimpex HD Stator ARCTIC CAT - 225559
  • Kimpex HD Stator ARCTIC CAT - 225559
  • Kimpex HD Stator ARCTIC CAT - 225559
Kimpex HD Stator ARCTIC CAT - 225559

Kimpex HD Stator ARCTIC CAT - 225559

RMS010-104019
228,35 $
Shipping calculated at checkout.
2 left

Delivered in 3 to 5 business days
when ordered before noon

30-day returns
See conditions

Expert advice
A team that rides too
  • A direct replacement for your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest-grade lamination materials
  • Highest-grade copper wire, rated for 200 degrees Celsius

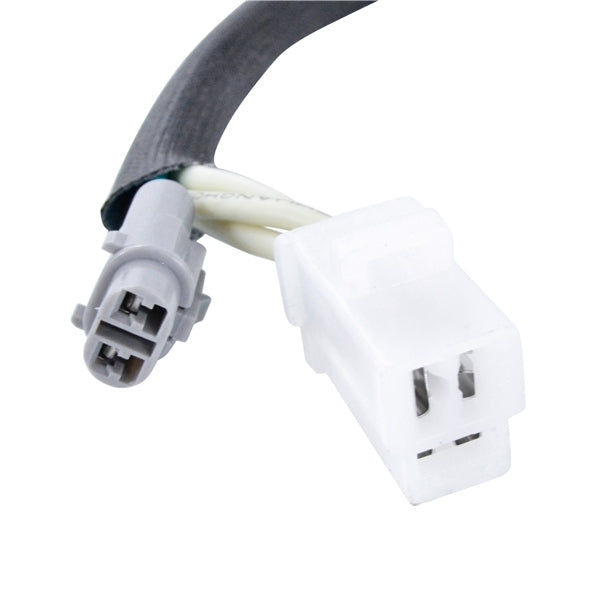

  • Connector included

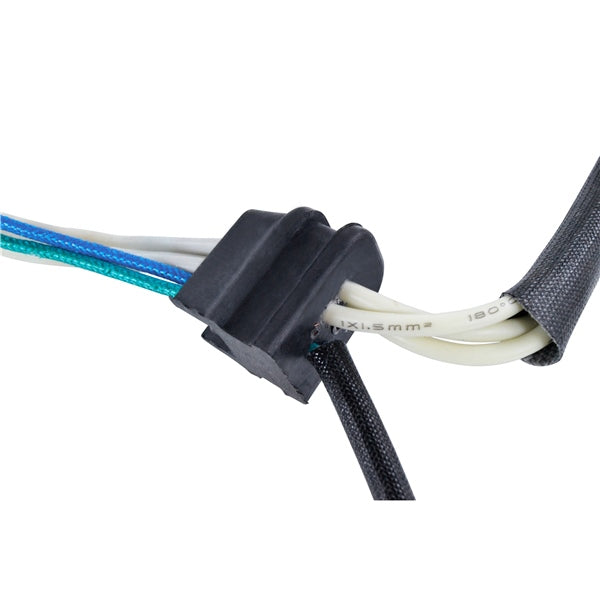

  • Rubber grommet included
  • All products are tested before shipping
Note: The condition of the battery has a significant impact on the stability of the electrical system. No stator can function properly with a weak or defective battery. Always charge your battery before testing your charging system or replacing other parts. If in doubt, have your battery capacity tested or replace it.
  • Compatible brandARCTIC CAT
  • Inner diameter (mm)53
  • Outer diameter (mm)114
  • Thickness (mm)17
  • Number of wires5
  • Number of connectors2
  • Number of terminals5
  • NotesIncludes: Ignition sensor
  • Part number225559
