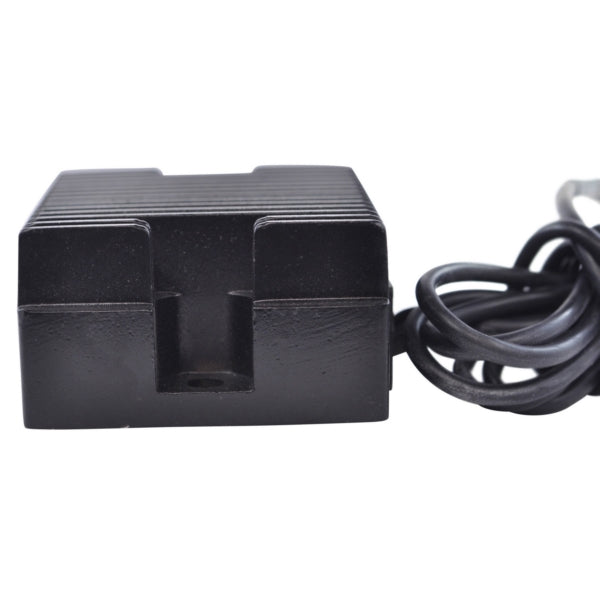

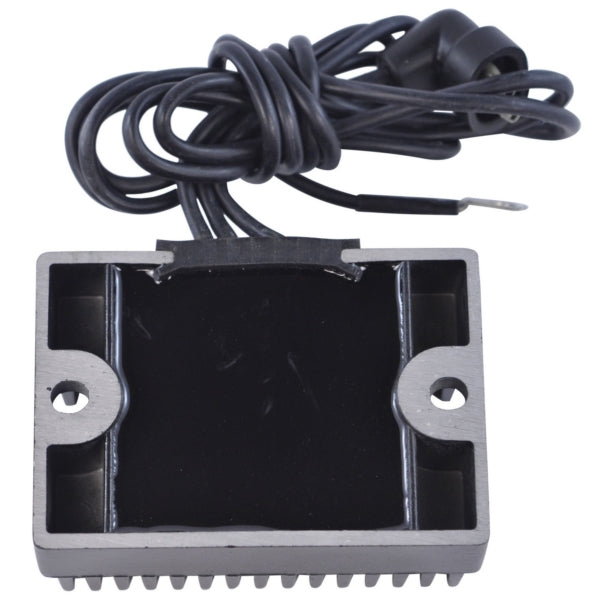

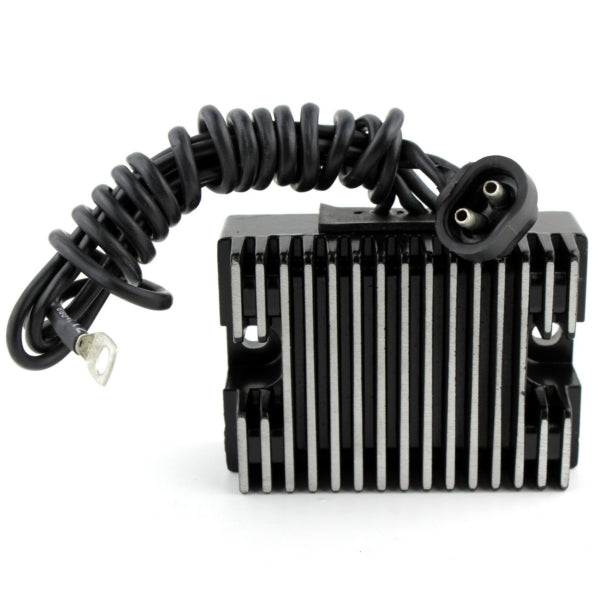

Kimpex HD MOSFET Voltage Regulator Rectifier for HARLEY-DAVIDSON - 285044
161,99 $
Skip to product information
3 left
Stop burning out your voltage regulator! It’s time to upgrade or replace your voltage regulator with advanced MOSFET technology.
This modern, ultra-reliable design can handle up to 50 amps peak and 30 amps continuous in three-phase applications, or 30 amps in single-phase applications. It runs cooler than all OEM diode regulators. In addition, this rectifier has overheat protection; rather than burning out, it shuts down temporarily to cool off.
Operating temperature : Runs at a much lower temperature than conventional regulators.
Fuel savings : Less resistance, less strain. The engine will inevitably use less fuel, saving you money.
Regulated power supply : The electrical supply is more uniform, more linear, and free of spikes.
Improved battery life : The electrical power used to recharge your battery is more stable and will extend its service life.
More engine power : A MOSFET-type regulator can shut off all this wasted energy and eliminate the mechanical resistance transferred to the engine.
Optimized power : It can also optimize the amount of power delivered by activating or deactivating the generator windings according to electrical demand.
Kimpex HD MOSFET Voltage Regulator Rectifier for HARLEY-DAVIDSON - 285044
RM30925
161,99 $
Shipping calculated at checkout.
This modern, ultra-reliable design can handle up to 50 amps peak and 30 amps continuous in three-phase applications, or 30 amps in single-phase applications. It runs cooler than all OEM diode regulators. In addition, this rectifier has overheat protection; rather than burning out, it shuts down temporarily to cool off.
- A direct replacement for your original unit
- No assembly required
- Higher-grade electrical components
- Improved heat sink and load capacity
- Superior quality to OEM equipment
- All products are tested before shipment
- 2-year limited warranty
Operating temperature : Runs at a much lower temperature than conventional regulators.
Fuel savings : Less resistance, less strain. The engine will inevitably use less fuel, saving you money.
Regulated power supply : The electrical supply is more uniform, more linear, and free of spikes.
Improved battery life : The electrical power used to recharge your battery is more stable and will extend its service life.
More engine power : A MOSFET-type regulator can shut off all this wasted energy and eliminate the mechanical resistance transferred to the engine.
Optimized power : It can also optimize the amount of power delivered by activating or deactivating the generator windings according to electrical demand.
- Width (mm)68
- Length (mm)96
- Height (mm)37
- Number of wiresN/A
- Wire length1275 mm

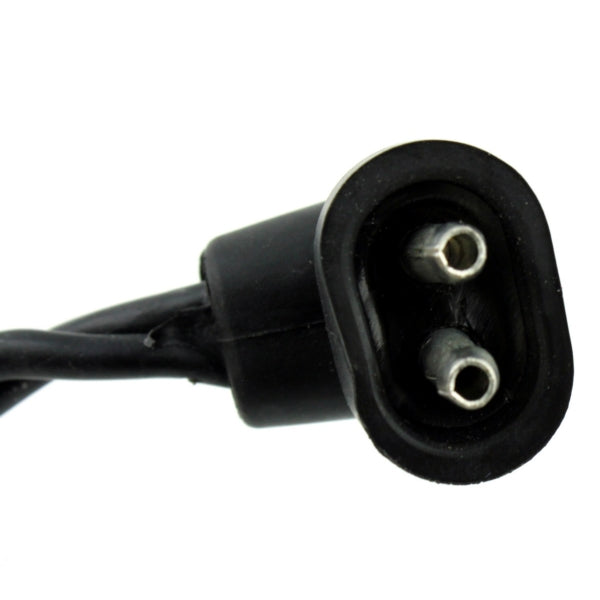

- Number of connectors2
- Number of terminals3
- MM between mounting holes80
- Compatible brandHARLEY-DAVIDSON
- Number285044
- NotesN/A
