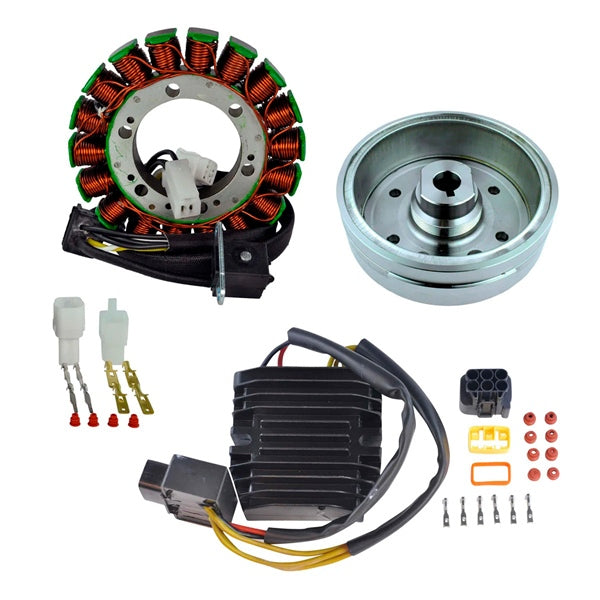

Kimpex HD Stator assembly, Mosfet regulator and upgraded flywheel SUZUKI - 345547

• A direct replacement for your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

In case of doubt, do not hesitate to compare our item to your original part by referring to our photos.

We have included the mating connector (main harness side) because we know the connector is often melted / corroded / faulty and is a major cause of electrical issues.

• Highest grade lamination materials
• Highest grade copper wiring, resistant to 200 degrees Celsius
• Pick-up pulsar coil, connector, and grommet included

• Highest grade of electrical components
• Improved heat sink and charging capabilities
• Quality is superior to OEM equipment

Mosfet Voltage Regulator Rectifier:

Stop burning out your regulator!
It is time to upgrade or replace your voltage regulator with advanced MOSFET technology.
This modern, ultra-reliable design can handle up to 50 amps peak and 30 amps continuous 3-phase, 30 amps single-phase, and dissipates heat better than all diode-based OEM regulators. Furthermore, this rectifier has overheat protection; rather than burning out, it shuts down for a moment to cool off.

Why use upgraded Mosfet technology?

Operating temperature
Runs at a much lower temperature than standard regulators.
Fuel economy
Less resistance, less strain. The engine will inevitably use less fuel and you will save money.
Improved battery longevity
The electrical power that charges your battery is more stable and will extend its useful life.
More engine power
A Mosfet-type regulator can deactivate all that wasted energy and cancel out the mechanical resistance transmitted to the engine.


Heavy-duty flywheel

Our upgraded RMSTATOR motorcycle flywheel is an economical and durable solution to known OEM flywheel problems. It is also a serious and reliable alternative to DIY repairs.

Improvements

Manufactured to OEM specifications: Installs precisely in place of the original flywheel.
Improved epoxy glue: Uses high-temperature epoxy glue that performs better and prevents magnets from detaching.
High-quality steel cover: Prevents heat and friction from degrading the magnet epoxy. Also protects the stator in the extremely unlikely event that a magnet detaches.
Precision balanced: Eliminates vibrations on the engine crankshaft to improve its longevity.

• Compatible brandSUZUKI
• Inner diameter (mm)53
• Outer diameter (mm)119
• Thickness (mm)15
• Number of wires7
• NotesIncludes parts #285685; #285754; #281752
• Number345547
