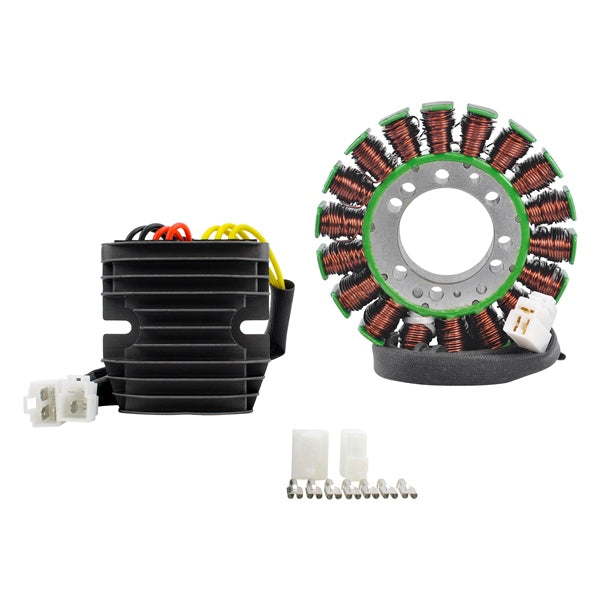

Kimpex HD TRIUMPH Aluminum Stator and Mosfet Voltage Regulator Kit - 225770

• A direct replacement for your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

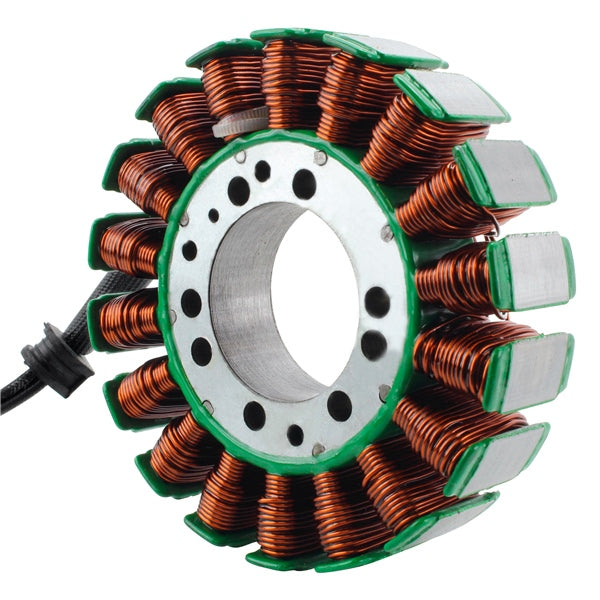

Stator

• Highest grade of lamination materials
• Highest grade of copper wire, resistant to 200 degrees Celsius
• Connectors included
• Grommet included

CNC-machined aluminum Mosfet voltage regulator

Our new RMSTATOR Mosfet voltage regulator, made of CNC-machined aluminum, is a true revolution in heat dissipation for recreational vehicle charging systems. After only 10 minutes of use, our machined aluminum housing runs at a temperature 33% lower than standard steel housings. Our new red voltage regulator, equipped with the famous Mosfet regulation technology, is a value-added upgrade for all three-phase charging systems.

Stop burning out your regulator!
It is time to upgrade or replace your voltage regulator with advanced MOSFET technology.
This modern, ultra-reliable design can handle up to 50 amps peak and 30 amps continuous 3-phase, 30 amps single-phase, and dissipates heat better than all OEM diode-based regulators. Furthermore, this rectifier has overheat protection; rather than burning out, it shuts down for a moment to cool off.

• No assembly required
• Highest grade of electronic components
• Improved heat sink and charging capabilities
• Quality exceeds OEM equipment

We have included the mating connector (main harness side), as we know the connector is often melted / corroded / faulty and is a major cause of electrical issues.

When in doubt, do not hesitate to compare our item to your original part by referring to our photos.

Why use upgraded Mosfet technology?

Operating temperature: Runs at a much lower temperature than conventional regulators. Fuel economy: Less resistance, less effort. The engine will necessarily use less fuel, and you will save money. Improved battery longevity: The electrical power recharging your battery is more stable and will extend its useful life. More engine power: A Mosfet-type regulator can deactivate all that wasted energy and cancel out the mechanical resistance transmitted to the engine.

• Compatible brandTRIUMPH
• Internal diameter (mm)42
• External diameter (mm)115
• Thickness (mm)22
• Number of wires3
• Number of connectors1
• Number of terminals3
• Notes18-Pole stator
• Number225770
