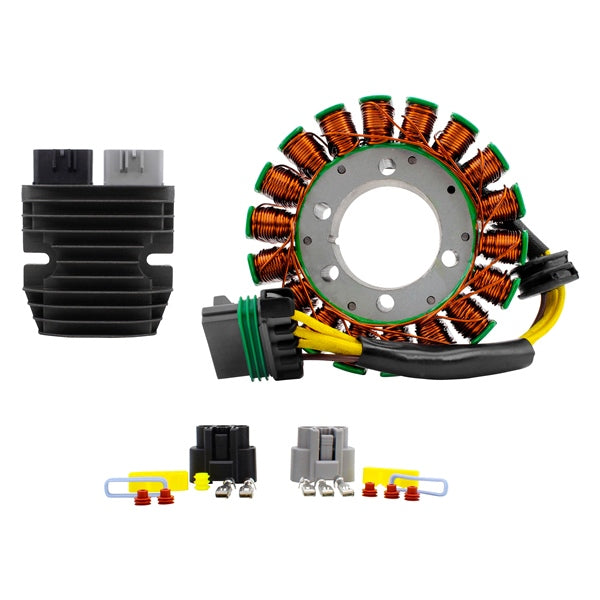

Kimpex HD POLARIS Aluminum Stator and Mosfet Voltage Regulator Kit - 225765

• A direct replacement for your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

Stator

• Highest grade of lamination materials
• Highest grade of copper wire, resistant to 200 degrees Celsius
• Connectors included
• Grommet included

CNC machined aluminum Mosfet voltage regulator

Our new RMSTATOR Mosfet voltage regulator, made of CNC machined aluminum, is a true revolution in heat dissipation for powersports vehicle charging systems. After only 10 minutes of use, our CNC machined housing operates at a temperature 33% lower than standard steel housings. Our new red voltage regulator, equipped with the famous Mosfet regulation technology, is an added value for all three-phase charging systems.

Stop burning through your regulator!
It is time to upgrade or replace your voltage regulator with advanced MOSFET technology.
This modern, ultra-reliable design can handle up to 50 amps peak and 30 amps continuous 3-phase, 30 amps single-phase, and dissipates heat better than all OEM diode-based regulators. Furthermore, this rectifier features overheat protection; rather than burning out, it shuts down momentarily to cool off.

• No assembly required
• Highest grade of electronic components
• Improved heat sink and charging capabilities
• Quality is superior to OEM equipment

We have included the mating connector (main harness side), as we know the connector is often melted/corroded/defective and is a major cause of electrical issues.

When in doubt, do not hesitate to compare our item to your original part, referring to our photos.

Why use improved Mosfet technology?

Operating temperature: Operates at a much lower temperature than conventional regulators. Fuel economy: Less resistance, less effort. The engine will inevitably use less fuel and you will save money. Improved battery longevity: The electrical power that recharges your battery is more stable and will extend its useful life. More engine power: A Mosfet-type regulator can disable all that wasted energy and will cancel the mechanical resistance transmitted to the engine.

• Compatible BrandPOLARIS
• Inner Diameter (mm)40
• Outer Diameter (mm)106
• Thickness (mm)24
• Number of Wires4
• Number of Connectors1
• Number of Terminals4
• NotesMating connector included (main harness side)
• Part Number225765
