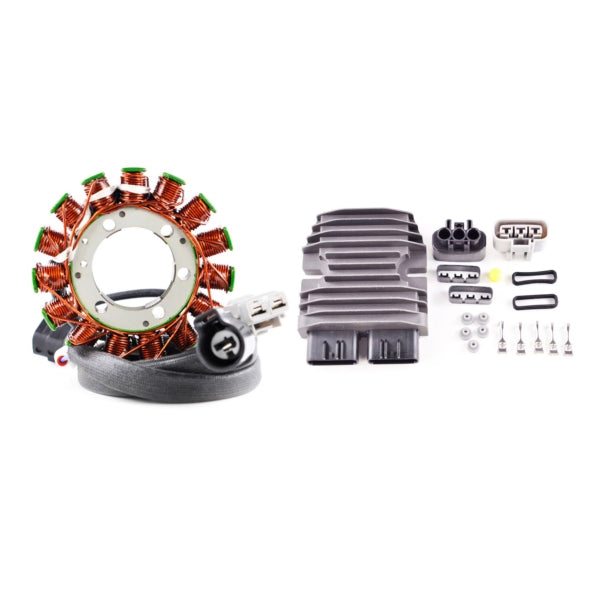

Kimpex HD Stator and Aluminum Mosfet Voltage Regulator Kit KAWASAKI - 225515

• A direct replacement for your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

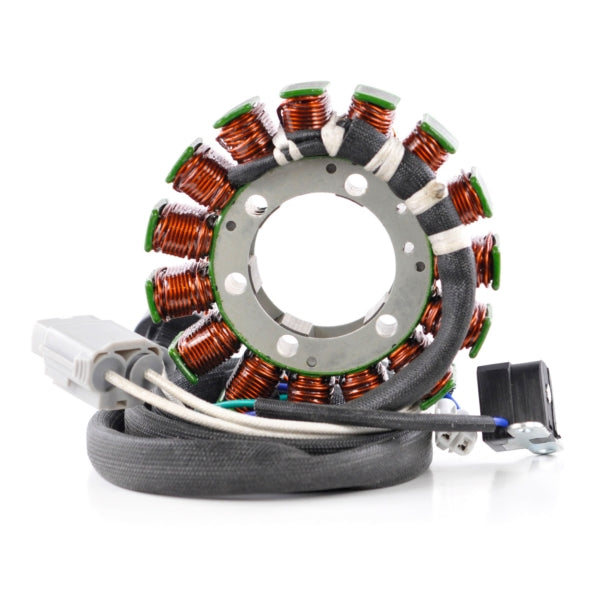

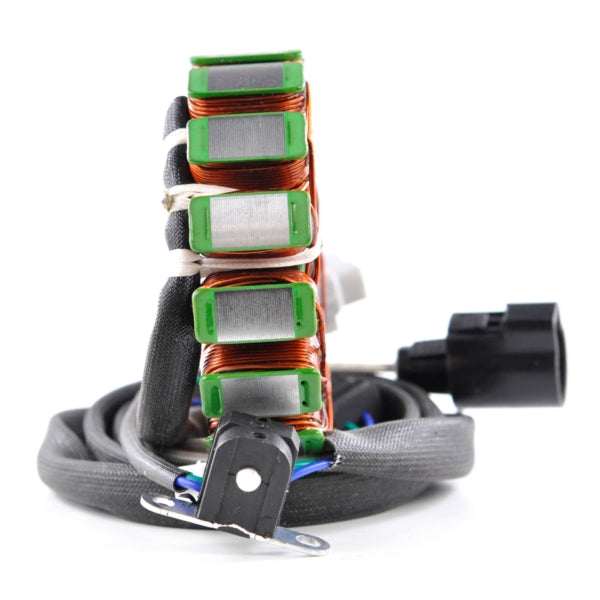

Stator

• Highest grade of lamination materials
• Highest grade of copper wire, resistant to 200 degrees Celsius
• Connectors included
• Grommet included

CNC-machined aluminum Mosfet voltage regulator

Our new RMSTATOR Mosfet voltage regulator, made of CNC-machined aluminum, is a true revolution in heat dissipation for recreational vehicle charging systems. After only 10 minutes of use, our CNC-machined housing operates at a temperature 33% lower than standard steel housings. Our new red voltage regulator, equipped with the famous Mosfet regulation technology, is an added value for all three-phase charging systems.

Stop burning out your regulator!
It is time to upgrade or replace your voltage regulator with advanced MOSFET technology.
This modern, ultra-reliable design can handle up to 50 amps peak and 30 amps continuous 3-phase, 30 amps single-phase, and dissipates heat better than any OEM diode-based regulator. Furthermore, this rectifier features overheat protection; rather than burning out, it shuts down for a moment to cool off.

• No assembly required
• Highest grade of electronic components
• Improved heat sink and charging capabilities
• Quality is superior to OEM equipment

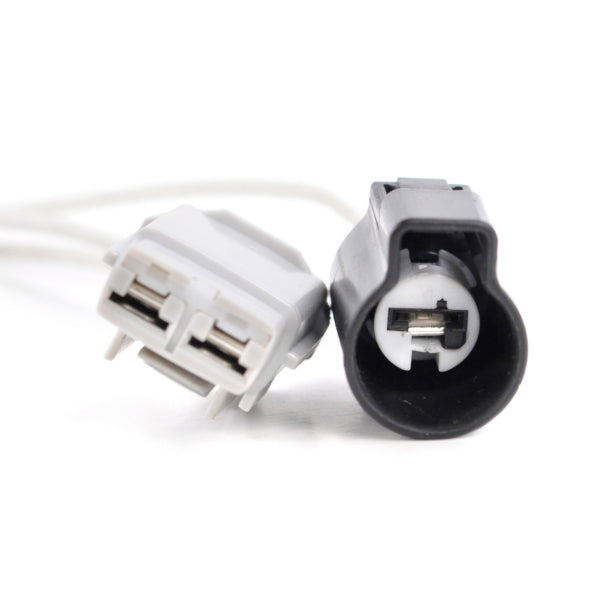

We have included the mating connector (main harness side), as we know the connector is often melted/corroded/defective and is a major cause of electrical issues.

When in doubt, do not hesitate to compare our item to your original part by referring to our photos.

Why use improved Mosfet technology?

Operating temperature: Operates at a much lower temperature than conventional regulators. Fuel savings: Less resistance, less effort. The engine will inevitably use less fuel, and you will save money. Improved battery longevity: The electrical power that recharges your battery is more stable and will extend its service life. More engine power: A Mosfet-type regulator can deactivate all that wasted energy and cancel out the mechanical resistance transmitted to the engine.

• Compatible brandKAWASAKI
• Inner diameter (mm)42
• Outer diameter (mm)105
• Thickness (mm)20
• Number of wires5
• Number of connectors3
• Number of terminals5
• Number225515
