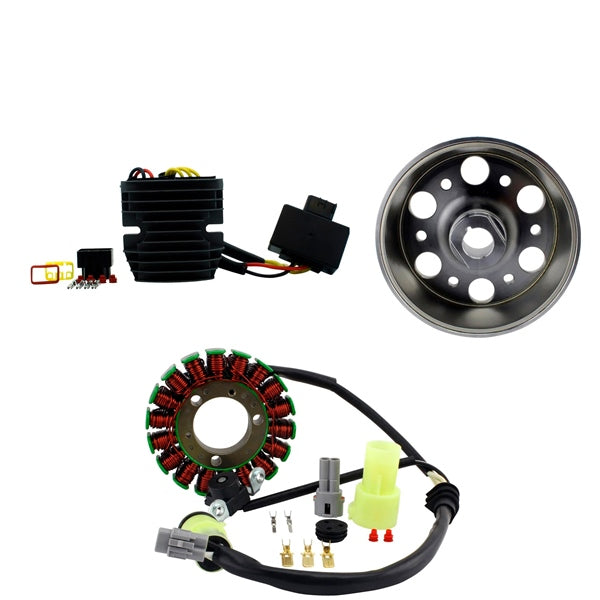

Kimpex HD 300W Stator Kit, MOSFET Regulator and Flywheel for YAMAHA - 345592

• A direct replacement for your OEM unit
• Plug-and-play, direct fit, easy installation
• Highest-grade lamination materials
• Highest-grade copper wire, rated to 200 degrees Celsius
• Ignition sensor included
• Connectors included
• Grommet included
• All products are tested before shipping

This stator produces 300W (vs. OEM 208W) to provide extra power for installing accessories and lighting.

We have included the mating connector (main harness side), as we know that the connector is often melted / corroded / defective and is a major cause of electrical problems.

If in doubt, feel free to compare our item with your original part using our photos as a reference.

Mosfet Voltage Regulator Rectifier:

Stop burning out your regulator!
It's time to upgrade or replace your voltage regulator with advanced MOSFET technology.
This modern, ultra-reliable design can handle up to 50 amps peak and 30 amps continuous for 3-phase systems, or 30 amps for single-phase systems, and dissipates heat better than all OEM diode regulators. In addition, this rectifier has overheat protection; instead of burning out, it shuts down temporarily to cool off.

Why use improved Mosfet technology?

Operating temperature
Runs at a much lower temperature than conventional regulators.
Fuel savings
Less resistance, less effort. The engine will inevitably use less fuel, saving you money.
Improved battery life
The electrical power used to recharge your battery is more stable and will extend its service life.
More engine power
A Mosfet-type regulator can eliminate all that wasted energy and reduce the mechanical resistance placed on the engine.

• Compatible brandYAMAHA
• Inner diameter (mm)37
• Outer diameter (mm)97
• Thickness (mm)14
• Number of wires5
• NotesIncludes parts #345267; #285754; #345251
• Number345592
